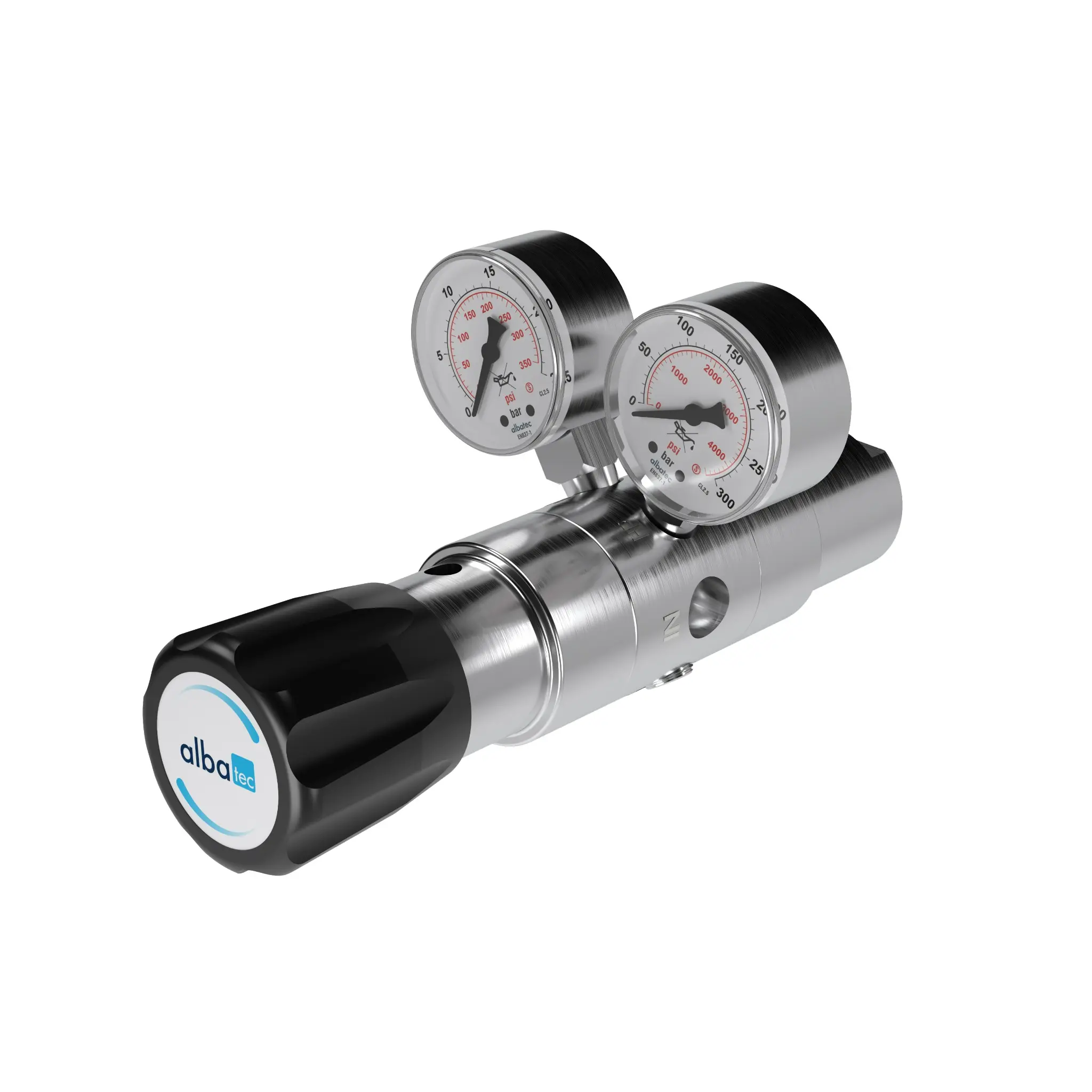

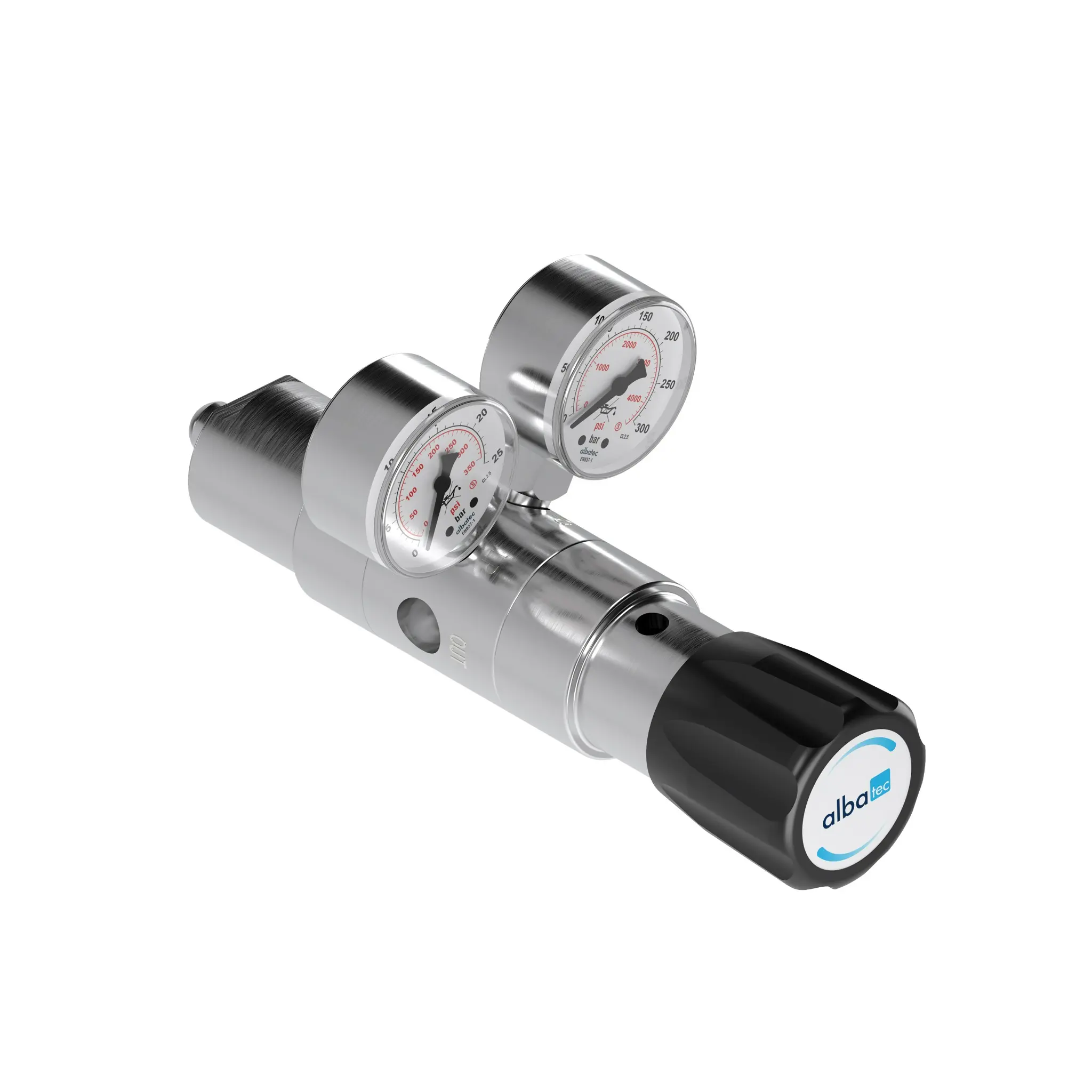

The Albatec LRA 1230 is a dual-stage, six-port line pressure regulator designed for precise pressure reduction and stable downstream pressure control within central and specialty gas distribution systems. It is available with a nickel-chrome-plated brass body and bonnet for inert, reactive, flammable, and oxidizing gases and gas mixtures up to grade 6.0, or with a stainless-steel 316 body and bonnet for corrosive gases. Key features:
| Technical Specification | Value |
|---|---|
| Regulator type | Dual-stage |
| Installation type | Inline / system-mounted |
| Maximum inlet pressure P1 | 300 bar |
| Available outlet pressures P2 | 2, 4, 8 or 10 bar |
| Body material | Nickel-chrome-plated brass or stainless steel 316 |
| Valve seat | PCTFE |
| Diaphragm | Hastelloy® C276 |
| Filter | Stainless steel 316 |
| Number of ports | 6 |
| Inlet and outlet ports | 1/4″ NPT female |
| Operating temperature | −30°C to +74°C |
| External leak rate | 1 × 10⁻⁸ mbar·l/s He |
| Seat leakage rate | 1 × 10⁻⁶ mbar·l/s He |
| Flow coefficient | Cv = 0.07 |
| Weight | 2.20 kg |
| Oxygen-service testing | CGA E-4 oxygen shock tested |
| Applicable standards | EN ISO 2503 and DIN EN 837-1 |
For detailed specifications and additional product information, please refer to the product catalog available in the Downloads section.
